Cozy - Option I (Energy-Efficient)
A neat single-story house with attic spanning 174 m² built from SIP panels, engineered for exceptional energy performance. Five rooms, two bathrooms, and a single-car garage.
About this project
This energy-conscious Nord Haus design demonstrates how to maximize livability on a modest footprint. The pitched roof at 45° and 8.9 m peak height efficiently manages weather while creating abundant attic space for additional accommodation.
The ground floor (74 m² of living area) features an open-plan living and dining zone, equipped kitchen, dedicated office space, entrance vestibule, and utility areas with a full bathroom. This layout suits modern families who work remotely or need flexible spaces. A secondary entrance through the utility room connects directly to the garage for seamless vehicle access.
The upper floor (51.9 m² of living area) provides three generously-sized bedrooms, a second bathroom, plus a balcony and loggia for outdoor relaxation. SIP panels naturally regulate indoor air and temperature, creating serene bedrooms year-round without drafts or cold zones. The modest plot requirement of 20 × 19 m makes this project economical for dense residential developments across Europe.
Technical Specifications
- Total area
- 174 m²
- Living Area
- 125.9 m²
- Building area
- 124.1 m²
- Cubic Volume
- 689.9 m³
- Number of Floors
- 1 + attic
- Total rooms
- 5
- Bathrooms
- 2
- Garage
- 1 places
- House Type
- semi-detached or detached version
- Ground-floor ceiling height
- 2.63 m
- Attic height
- 0.80-2.66 m
- Roof Type
- Gable
- Roof Pitch Angle
- 45 °
- Height at the ridge
- 8.9 m
- Wall Material
- SIP panels
- Minimum Plot Size
- 20 × 19 m
Floor-by-floor layout

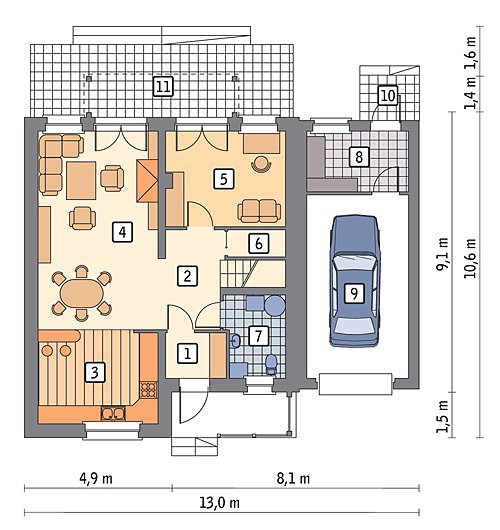

1st floor
74 m²
- 1 vestibule/entrance 2.9 m²
- 2 hall 8.6 m²
- 3 kitchen 12 m²
- 4 living room 25.6 m²
- 5 study 12.2 m²
- 6 storage room 0.9 m²
- 7 bathroom + utility room 5.2 m²
- 8 utility room 6.6 m²
- 9 garage 20 m²
- 10 terrace 2.6 m²
- 11 terrace 21.6 m²

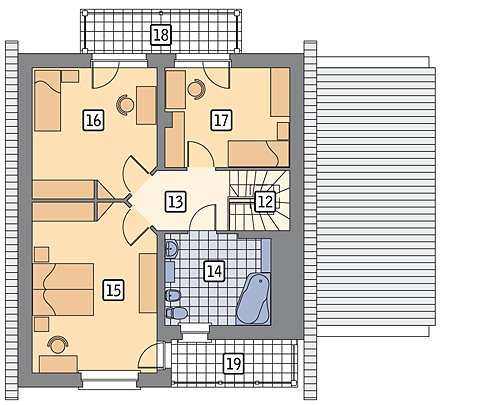

Attic
51.9 m²- 12 staircase 3.7 m²
- 13 hall 4.8 m²
- 14 bathroom 8.2 m²
- 15 bedroom 14.9 m²
- 16 bedroom 11.4 m²
- 17 bedroom 8.9 m²
- 18 balcony 7.2 m²
- 19 loggia 5.6 m²

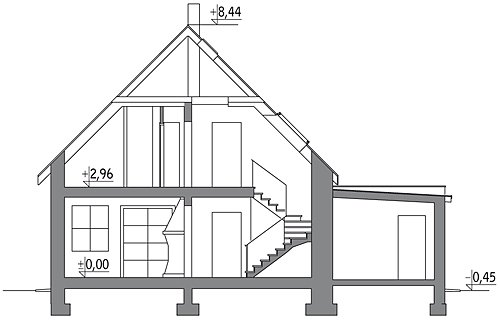

House cross-section
Vertical section with height marks and roof device
