Tranquil River — Option I
A 90 m² single-story SIP-panel home featuring two bedrooms and two bathrooms, delivered and erected in just 14 days. Perfect for small families requiring efficient, sustainable living.
About this project
The Tranquil River Option I exemplifies thoughtful compact design in a 90.1 m² footprint constructed from advanced SIP panels. The multifaceted roof pitched at 25° with a 5.7 m peak creates striking architectural interest.
The open-plan layout maximizes the 86.3 m² usable area across two independent bedrooms, a generous living-dining zone, a fully equipped kitchen, and dual bathrooms. An insulated vestibule minimizes thermal bridging at entry points, while the dedicated plant room accommodates flexible heating solutions. Every square meter serves a purpose, ensuring both functionality and comfort for up to four occupants.
Nord Haus SIP-panel construction transcends seasonal limitations—your home can rise regardless of weather, from Polish manufacturing through European delivery to final assembly. With a modest site requirement of just 18×22 m, this project suits infill developments and space-conscious landowners. Total volume of 565.5 m³ optimizes structural efficiency and operational sustainability.
Technical Specifications
- Total area
- 90.1 m²
- Living Area
- 86.3 m²
- Building area
- 134.5 m²
- Cubic Volume
- 565.5 m³
- Number of Floors
- 1
- Total rooms
- 4
- Bathrooms
- 2
- House Type
- detached
- Ground-floor ceiling height
- 2.72 m
- Roof Type
- multi-gable
- Roof Pitch Angle
- 25 °
- Height at the ridge
- 5.7 m
- Wall Material
- SIP panels
- Minimum Plot Size
- 18 × 22.1 m

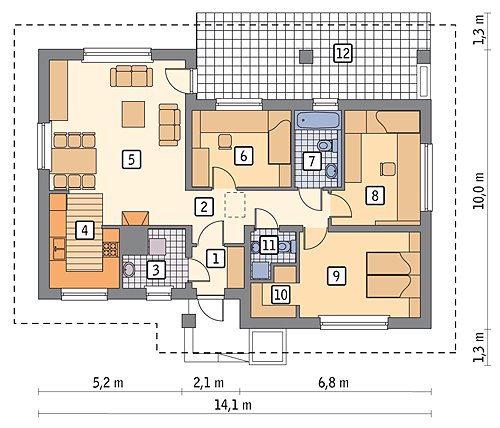

Floor-by-floor layout
1st floor
86.3 m²- 1 vestibule/entrance 2.6 m²
- 2 hall 7.1 m²
- 3 boiler room 3.8 m²
- 4 kitchen 7.5 m²
- 5 living room + dining room 26.2 m²
- 6 bedroom 9.5 m²
- 7 bathroom 4.4 m²
- 8 bedroom 11.5 m²
- 9 bedroom 13 m²
- 10 dressing room 2.4 m²
- 11 bathroom 2.1 m²
- 12 terrace 26 m²

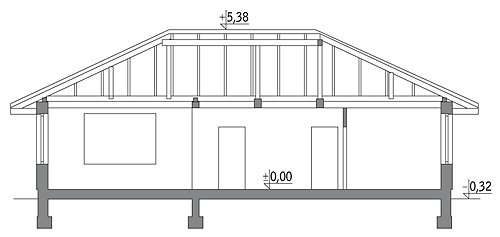

House cross-section
Vertical section with height marks and roof device
