Green Haven
Archived house concept with an area of 174.9 m². Plans and visualizations support discussion; documentation, construction method and feasibility require separate confirmation.
About this project
Archived house concept with an area of 174.9 m². Plans and visualizations support discussion; documentation, construction method and feasibility require separate confirmation.
The parameters below come from the design archive. Before ordering, documentation, site suitability, local requirements and material scope need checking. A visualization is not a photograph of our work. Cost, transport, installation and timing are agreed in an individual offer.
Technical Specifications
- Total area
- 174.9 m²
- Living Area
- 136.7 m²
- Building area
- 116 m²
- Cubic Volume
- 668 m³
- Number of Floors
- 1 + attic
- Total rooms
- 7
- Bathrooms
- 2
- House Type
- detached
- Ground-floor ceiling height
- 2.72 m
- Attic height
- 0.50-2.72 m
- Roof Type
- Gable
- Roof Pitch Angle
- 40 °
- Height at the ridge
- 7.9 m
- Wall Material
- SIP panels
- Minimum Plot Size
- 17.7 × 20.8 m
Floor-by-floor layout

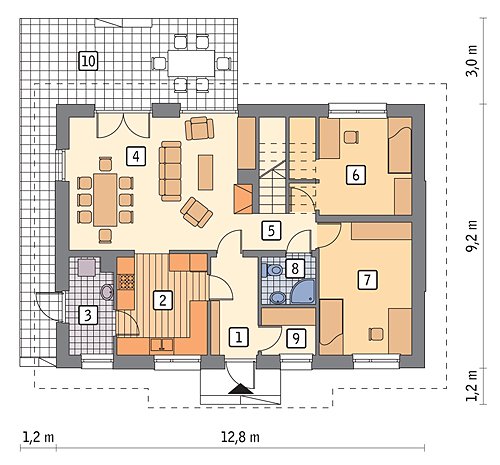

1st floor
78.8 m²
- 1 vestibule/entrance 5.3 m²
- 2 kitchen 10.5 m²
- 3 boiler room 4.7 m²
- 4 living room 28.6 m²
- 5 corridor 2.4 m²
- 6 bedroom 11.9 m²
- 7 bedroom 14.3 m²
- 8 bathroom 2.9 m²
- 9 dressing room 2.9 m²
- 10 terrace 32.3 m²

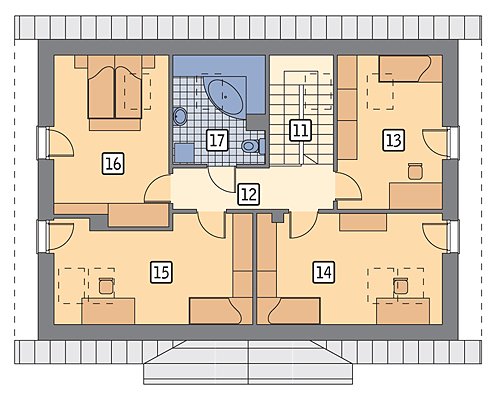

Attic
57.9 m²
- 11 staircase 6.3 m²
- 12 corridor 6.1 m²
- 13 bedroom 9.8 m²
- 14 bedroom 9.9 m²
- 15 bedroom 9.3 m²
- 16 bedroom 11.9 m²
- 17 bathroom 4.6 m²

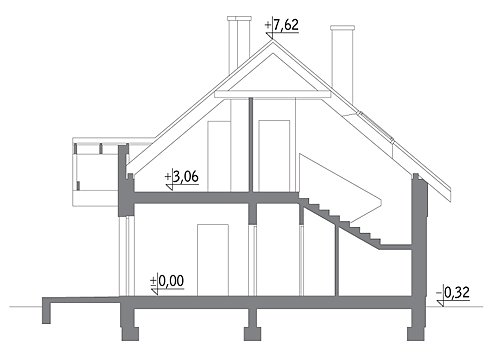

House cross-section
Vertical section with height marks and roof device
