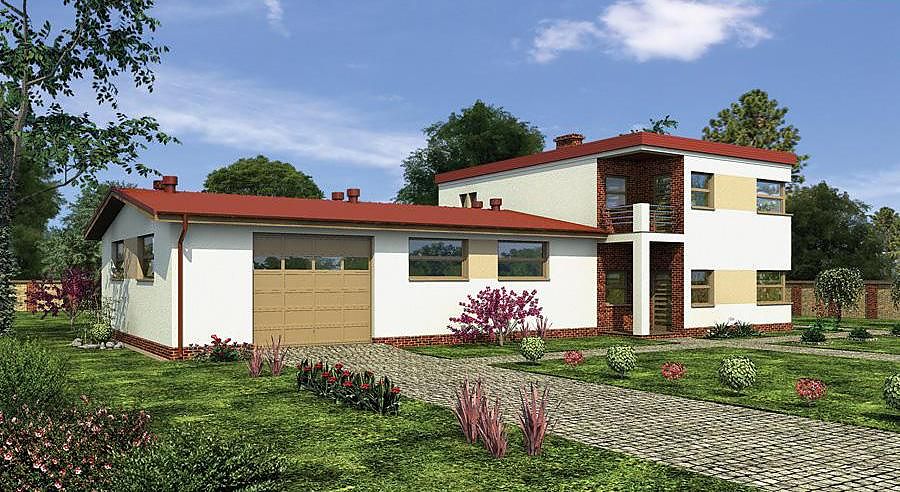

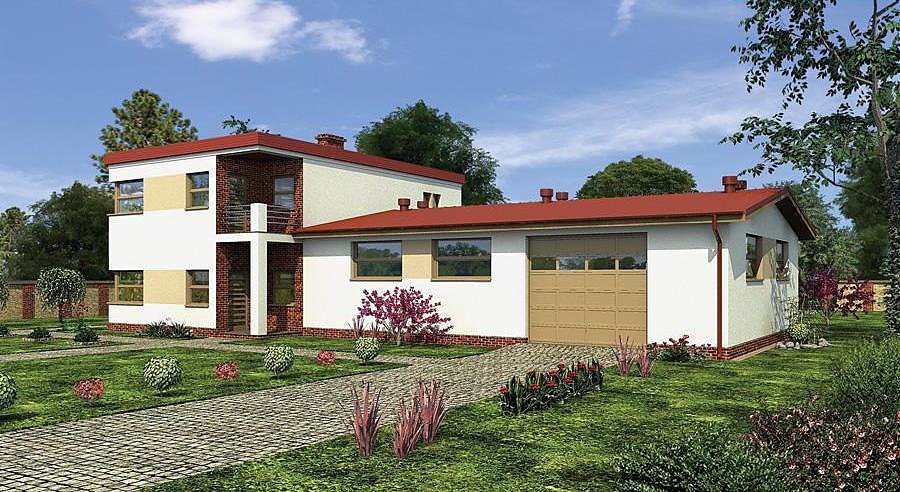

Service Center with Residential Apartments
A 269 m² dual-purpose building combining a professional service facility on the ground floor with comfortable living quarters above, constructed with high-performance SIP panels.
About this project
This innovative Nord Haus project seamlessly integrates commercial operations with residential comfort under one roof. The ground floor spans 189.8 m² and includes a spacious service office, technical facilities, boiler room, storage, and a dedicated staff rest area—all enclosed by superior SIP-panel construction that maintains consistent temperature and humidity year-round. The structural efficiency of SIP panels means significantly lower heating and cooling costs compared to traditional building methods.
The upper floor provides 73.2 m² of refined living space featuring a bedroom, living room, full kitchen, two bathrooms, and a sunny loggia. SIP panels deliver exceptional thermal and acoustic insulation, creating an exceptionally quiet and comfortable retreat above the working area. The robust construction allows for rapid assembly and building during any season, minimizing weather-related delays.
With a total volume of 1595.5 m³ and a pitched roof angled at 15°, this structure achieves both functional efficiency and architectural balance. Nord Haus delivers this project throughout Europe with complete installation finished within 14 days. Perfect for entrepreneurs in service industries, small-scale manufacturing, or administrative offices seeking integrated living and working spaces.
Technical Specifications
- Total area
- 269.2 m²
- Living Area
- 263.1 m²
- Building area
- 237.4 m²
- Cubic Volume
- 1595.5 m³
- Number of Floors
- 2
- Ground-floor ceiling height
- 3 m
- Roof Type
- Gable
- Roof Pitch Angle
- 15 °
- Height at the ridge
- 6.8 m
- Wall Material
- SIP panels
Floor-by-floor layout

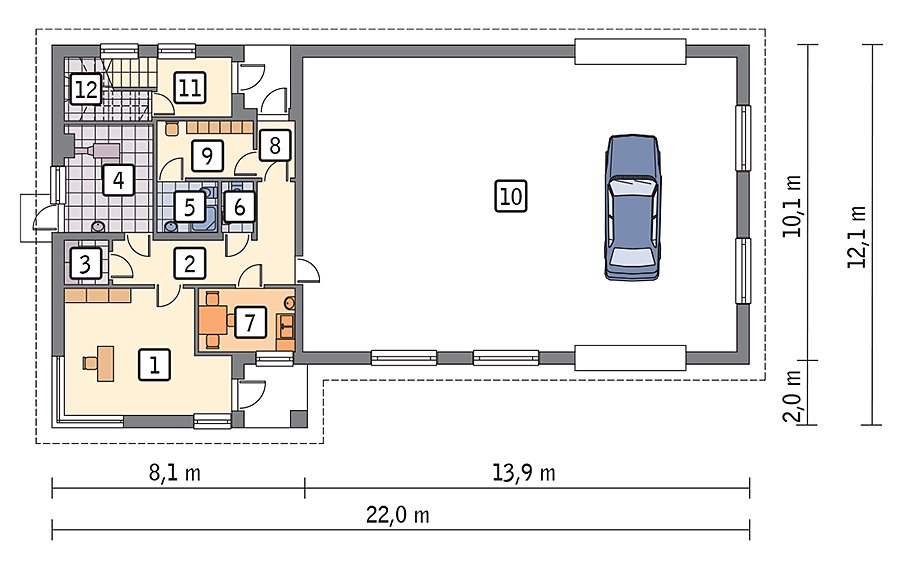

1st floor
189.8 m²
- 1 office 18.4 m²
- 2 corridor 10 m²
- 3 utility room 1.8 m²
- 4 boiler room 9.1 m²
- 5 bathroom 3 m²
- 6 bathroom 1.5 m²
- 7 staff rest room 5.9 m²
- 8 vestibule/entrance 2.1 m²
- 9 dressing room 5.3 m²
- 10 service area 126.4 m²
- 11 vestibule/entrance 4.3 m²
- 12 utility room 2 m²

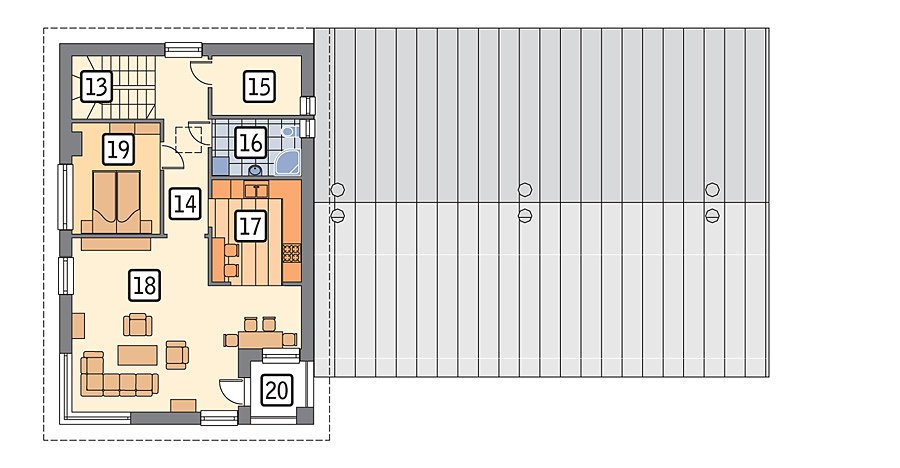

2nd floor
73.2 m²
- 13 staircase 5.1 m²
- 14 hall 8.2 m²
- 15 dressing room 5.2 m²
- 16 bathroom 5 m²
- 17 kitchen 9 m²
- 18 living room 31.3 m²
- 19 bedroom 9.4 m²
- 20 loggia 3.1 m²

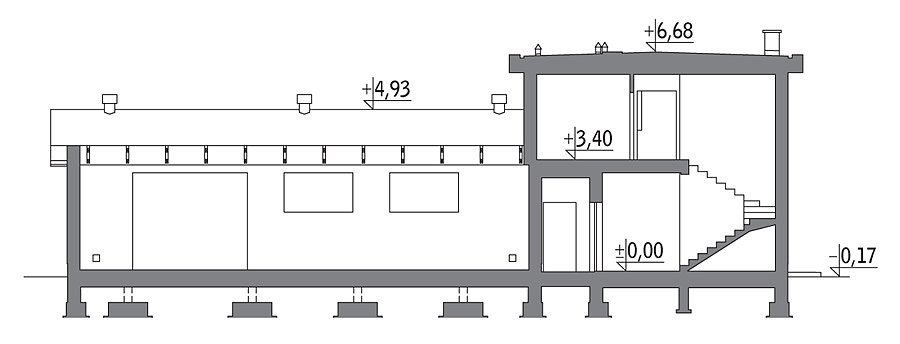

House cross-section
Vertical section with height marks and roof device
Cost
Quotations and configurations are preliminary. They do not reserve a date or conclude a contract. Delivery and installation are agreed for the address.
