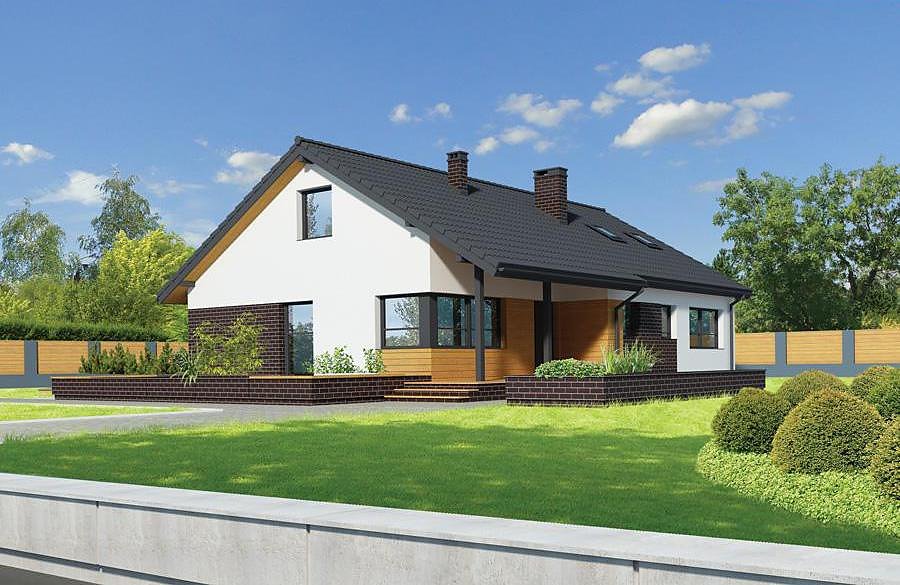

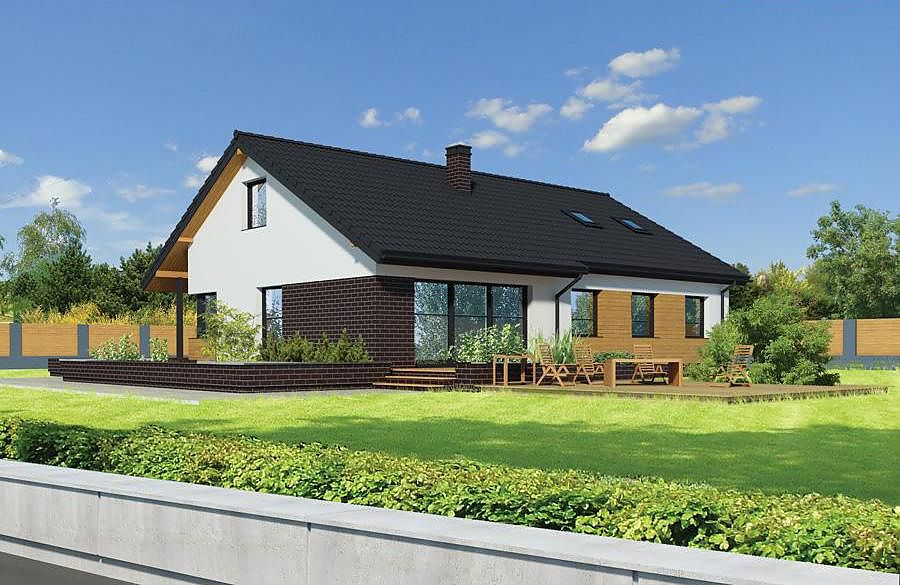

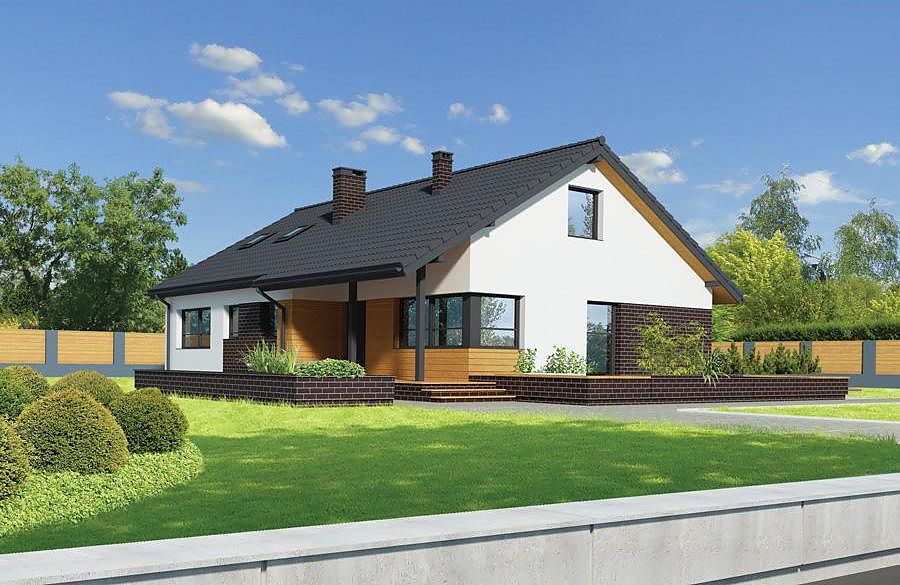

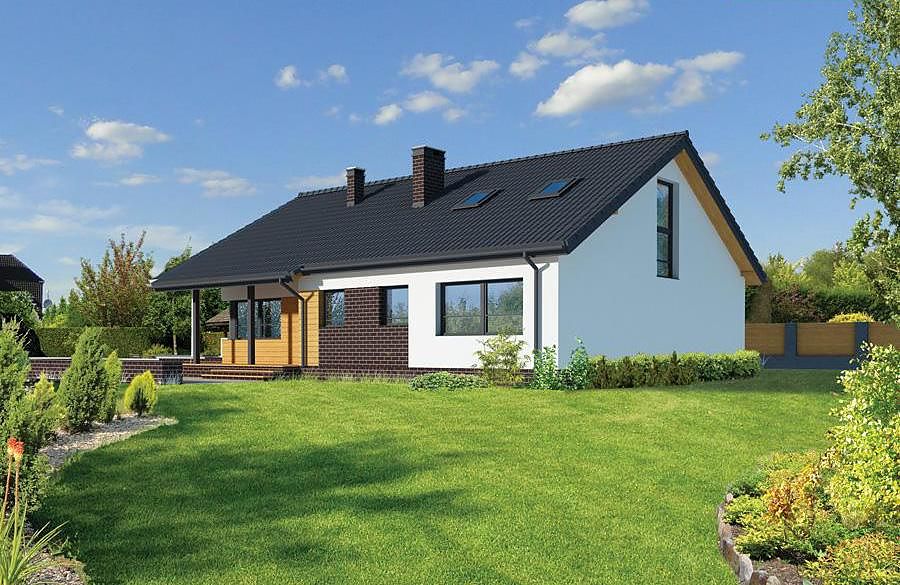

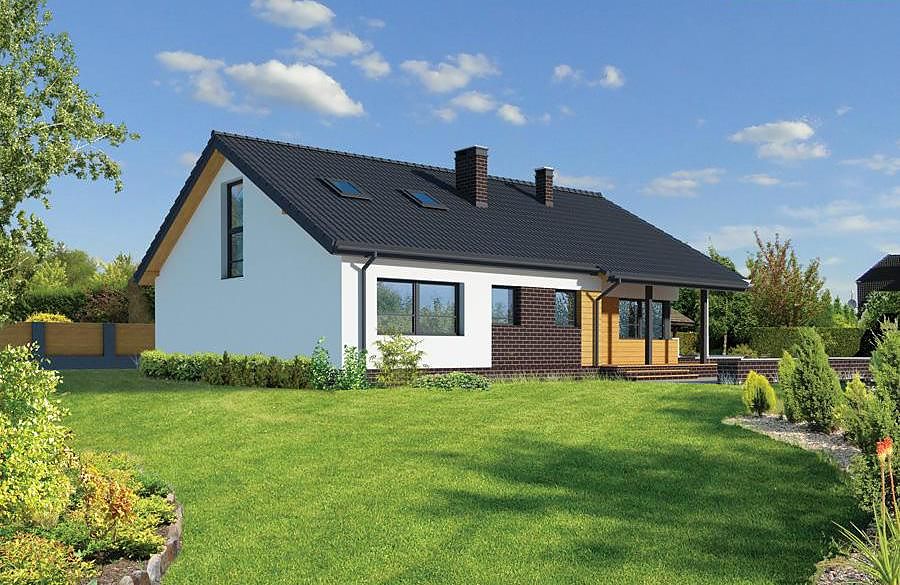

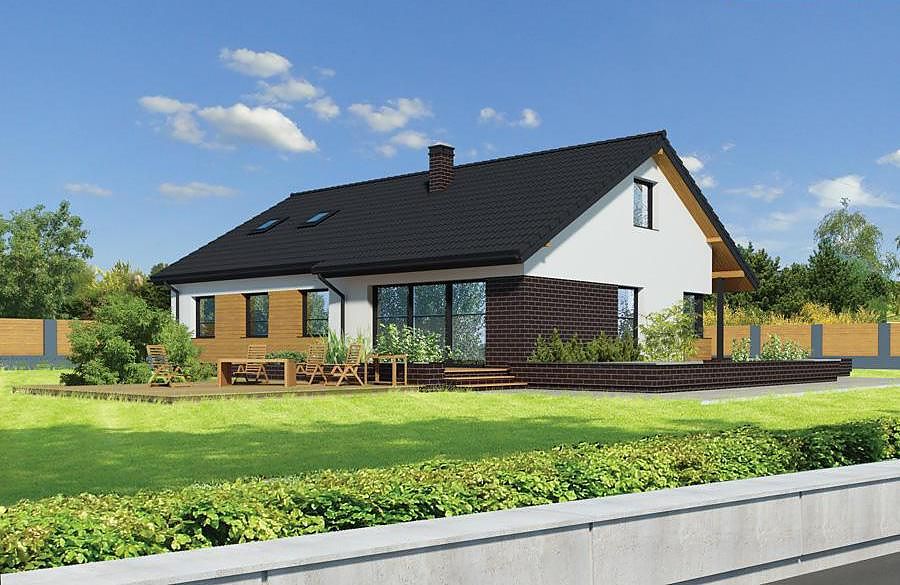

Archived house concept with an area of 132.1 m². Plans and visualizations support discussion; documentation, construction method and feasibility require separate confirmation.
About this project
Archived house concept with an area of 132.1 m². Plans and visualizations support discussion; documentation, construction method and feasibility require separate confirmation.
The parameters below come from the design archive. Before ordering, documentation, site suitability, local requirements and material scope need checking. A visualization is not a photograph of our work. Cost, transport, installation and timing are agreed in an individual offer.
Technical Specifications
- Total area
- 132.1 m²
- Living Area
- 124 m²
- Building area
- 165 m²
- Cubic Volume
- 895 m³
- Number of Floors
- 1
- Total rooms
- 5
- Bathrooms
- 2
- House Type
- detached
- Ground-floor ceiling height
- 2.67 m
- Roof Type
- Gable
- Roof Pitch Angle
- 30 °
- Height at the ridge
- 7.1 m
- Wall Material
- SIP panels
- Minimum Plot Size
- 19.8 × 23.3 m

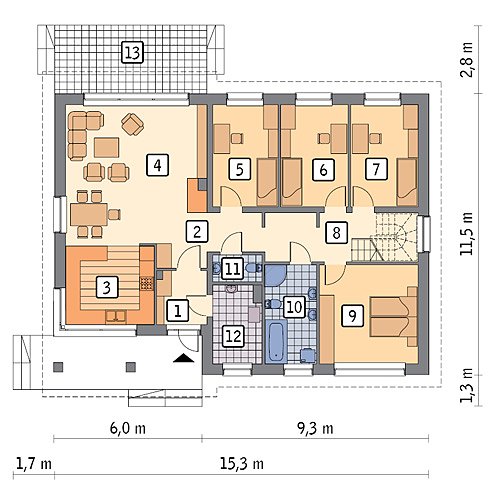

Floor-by-floor layout
1st floor
124 m²
- 1 vestibule/entrance 4.4 m²
- 2 hall 4.6 m²
- 3 kitchen 11.5 m²
- 4 living room 29.9 m²
- 5 bedroom 10.9 m²
- 6 bedroom 11.3 m²
- 7 bedroom 11.3 m²
- 8 corridor 13.7 m²
- 9 bedroom 16 m²
- 10 bathroom 8.3 m²
- 11 bathroom 2.1 m²
- 12 boiler room 6 m²
- 13 terrace 17.3 m²

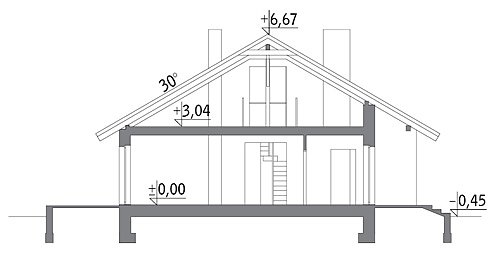

House cross-section
Vertical section with height marks and roof device
