Resourceful
Archived house concept with an area of 142.1 m². Plans and visualizations support discussion; documentation, construction method and feasibility require separate confirmation.
About this project
Archived house concept with an area of 142.1 m². Plans and visualizations support discussion; documentation, construction method and feasibility require separate confirmation.
The parameters below come from the design archive. Before ordering, documentation, site suitability, local requirements and material scope need checking. A visualization is not a photograph of our work. Cost, transport, installation and timing are agreed in an individual offer.
Technical Specifications
- Total area
- 142.1 m²
- Living Area
- 125.2 m²
- Building area
- 200.5 m²
- Cubic Volume
- 848.5 m³
- Number of Floors
- 1
- Total rooms
- 4
- Bathrooms
- 2
- Garage
- 1 places
- House Type
- detached
- Ground-floor ceiling height
- 2.7 m
- Roof Type
- multi-gable
- Roof Pitch Angle
- 30 °
- Height at the ridge
- 7.4 m
- Wall Material
- SIP panels
- Minimum Plot Size
- 24.9 × 21.6 m

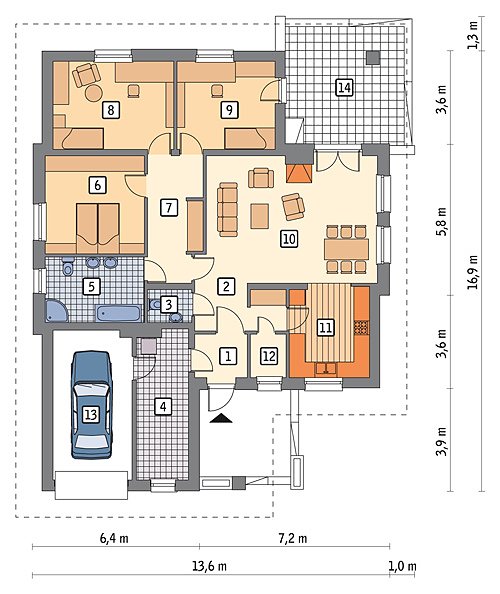

Floor-by-floor layout
1st floor
125.2 m²
- 1 vestibule/entrance 3.2 m²
- 2 hall 5.8 m²
- 3 bathroom 2 m²
- 4 boiler room + utility room 10.9 m²
- 5 bathroom 9 m²
- 6 bedroom 13.5 m²
- 7 corridor 9.4 m²
- 8 bedroom 15.2 m²
- 9 bedroom 12.3 m²
- 10 living room 31.3 m²
- 11 kitchen 10.4 m²
- 12 storage room 2.2 m²
- 13 garage 16.9 m²
- 14 terrace 20.2 m²

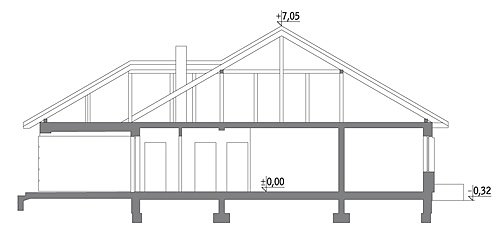

House cross-section
Vertical section with height marks and roof device
Cost
Quotations and configurations are preliminary. They do not reserve a date or conclude a contract. Delivery and installation are agreed for the address.
