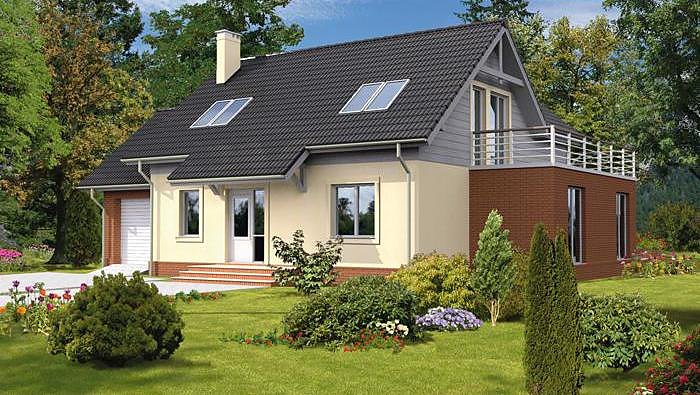

Over the River
Archived house concept with an area of 215.8 m². Plans and visualizations support discussion; documentation, construction method and feasibility require separate confirmation.
About this project
Archived house concept with an area of 215.8 m². Plans and visualizations support discussion; documentation, construction method and feasibility require separate confirmation.
The parameters below come from the design archive. Before ordering, documentation, site suitability, local requirements and material scope need checking. A visualization is not a photograph of our work. Cost, transport, installation and timing are agreed in an individual offer.
Technical Specifications
- Total area
- 215.8 m²
- Living Area
- 160.2 m²
- Building area
- 143.1 m²
- Cubic Volume
- 806 m³
- Number of Floors
- 1 + attic
- Total rooms
- 5
- Bathrooms
- 2
- Garage
- 1 places
- House Type
- semi-detached or detached version
- Ground-floor ceiling height
- 2.63 m
- Attic height
- 0.87-2.62 m
- Roof Type
- Gable
- Roof Pitch Angle
- 40 °
- Height at the ridge
- 8 m
- Wall Material
- SIP panels
- Minimum Plot Size
- 19.7 × 23.5 m
Floor-by-floor layout

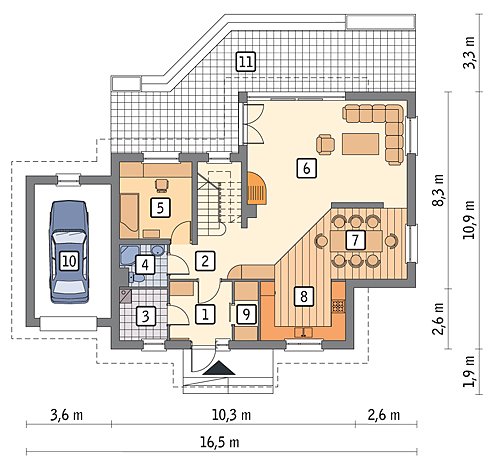

1st floor
94.8 m²
- 1 vestibule/entrance 6.4 m²
- 2 hall 9.2 m²
- 3 utility room 4.3 m²
- 4 bathroom 3.2 m²
- 5 bedroom 9.8 m²
- 6 living room 29.6 m²
- 7 dining room 20.5 m²
- 8 kitchen 9.1 m²
- 9 dressing room 2.7 m²
- 10 garage 18.1 m²
- 11 terrace 37.7 m²

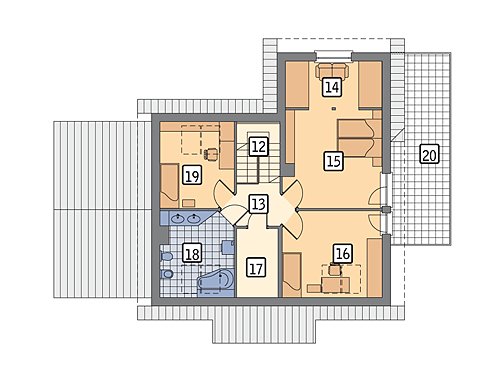

Attic
65.4 m²
- 12 staircase 5.5 m²
- 13 hall 4.5 m²
- 14 dressing room 7.7 m²
- 15 bedroom 17.2 m²
- 16 bedroom 11 m²
- 17 dressing room 3.3 m²
- 18 bathroom 7.8 m²
- 19 bedroom 8.4 m²
- 20 terrace 21.5 m²

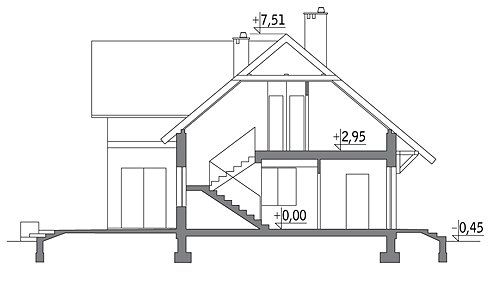

House cross-section
Vertical section with height marks and roof device
Cost
Quotations and configurations are preliminary. They do not reserve a date or conclude a contract. Delivery and installation are agreed for the address.
