Slender - Variant I

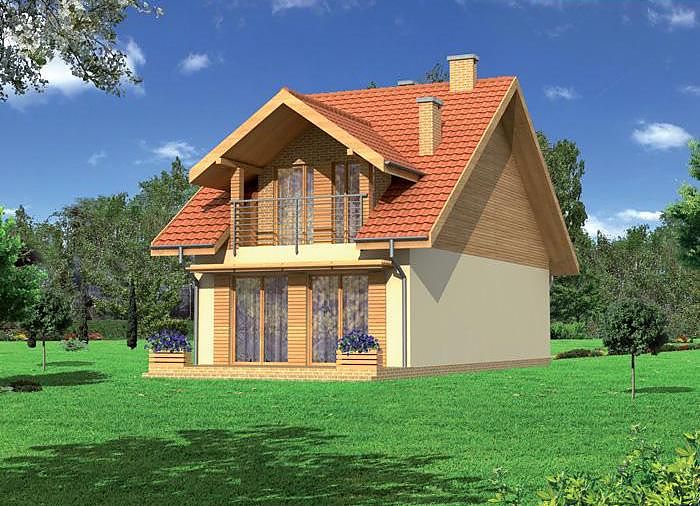

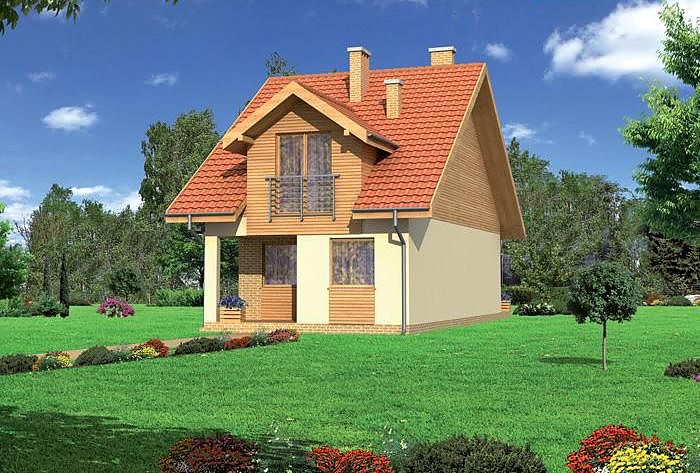

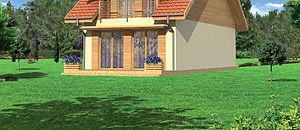

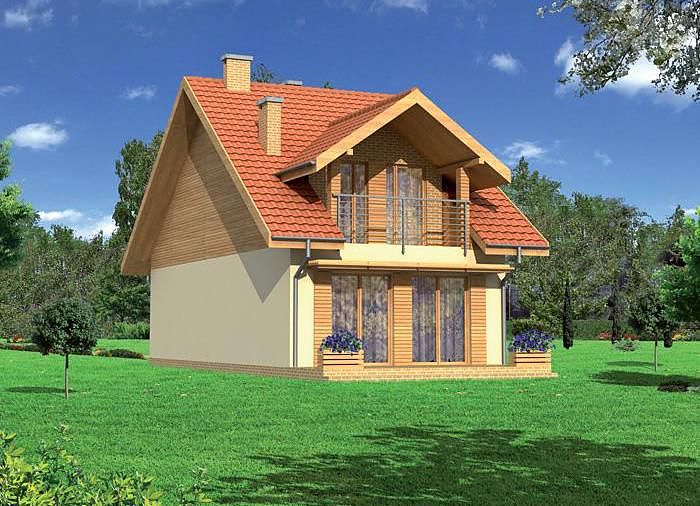

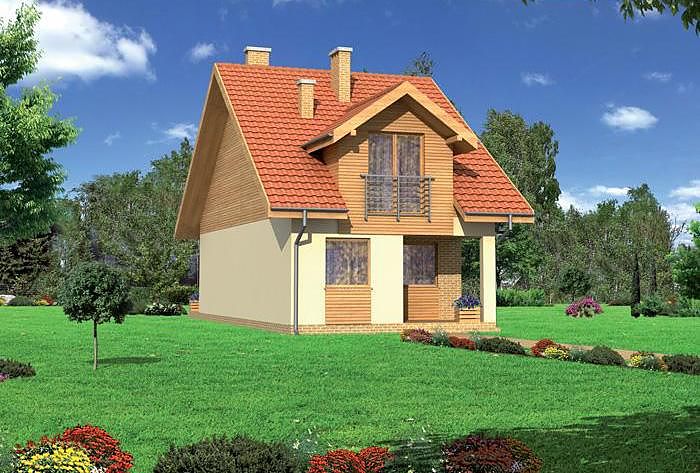

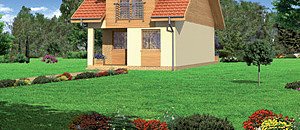

Archived house concept with an area of 116.1 m². Plans and visualizations support discussion; documentation, construction method and feasibility require separate confirmation.
About this project
Archived house concept with an area of 116.1 m². Plans and visualizations support discussion; documentation, construction method and feasibility require separate confirmation.
The parameters below come from the design archive. Before ordering, documentation, site suitability, local requirements and material scope need checking. A visualization is not a photograph of our work. Cost, transport, installation and timing are agreed in an individual offer.
Technical Specifications
- Total area
- 116.1 m²
- Living Area
- 106 m²
- Building area
- 73.7 m²
- Cubic Volume
- 693.3 m³
- Number of Floors
- 1 + attic
- Total rooms
- 4
- Bathrooms
- 2
- House Type
- semi-detached, townhouse or detached version
- Ground-floor ceiling height
- 2.69 m
- Attic height
- 1.64-3.20 m
- Roof Type
- Gable
- Roof Pitch Angle
- 35 °
- Height at the ridge
- 8.7 m
- Wall Material
- SIP panels
- Minimum Plot Size
- 21.3 × 13.1 m
Floor-by-floor layout

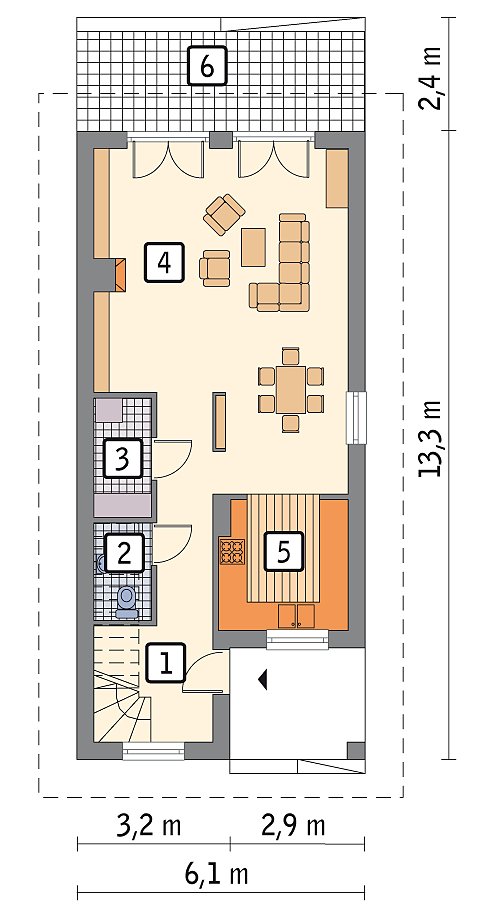

1st floor
52.1 m²- 1 hall 9.8 m²
- 2 bathroom 2.2 m²
- 3 boiler room 2.9 m²
- 4 living room 32.9 m²
- 5 kitchen 7.2 m²
- 6 terrace 12.8 m²

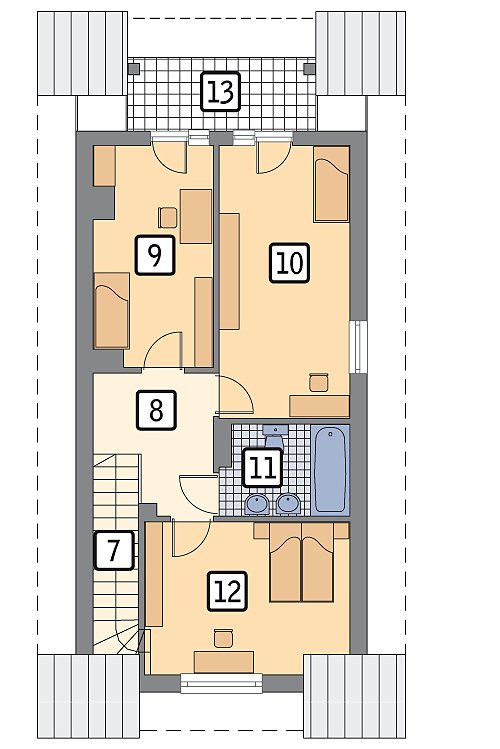

Attic
53.9 m²- 7 staircase 4.4 m²
- 8 hall 6 m²
- 9 bedroom 10.7 m²
- 10 bedroom 15.2 m²
- 11 bathroom 4.9 m²
- 12 bedroom 12.7 m²
- 13 balcony 5.3 m²

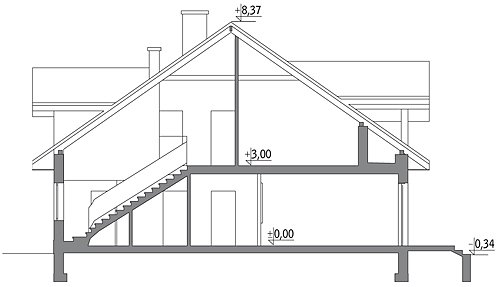

House cross-section
Vertical section with height marks and roof device
