Lakeside Home - Option I

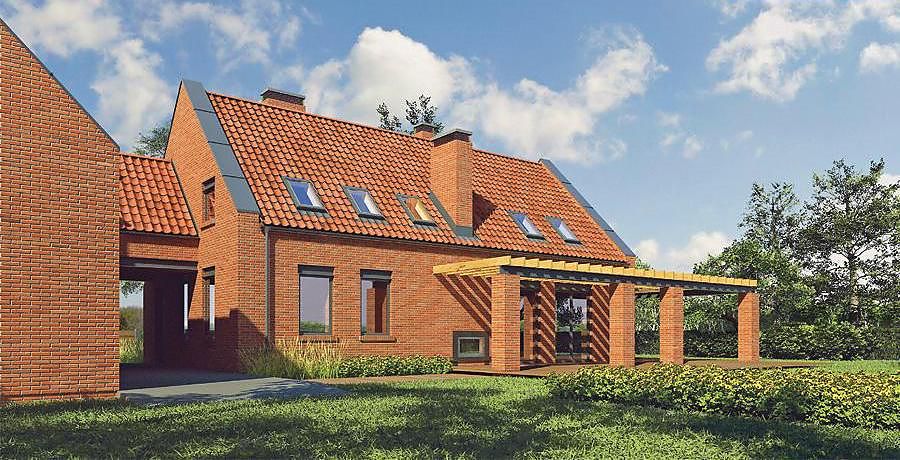

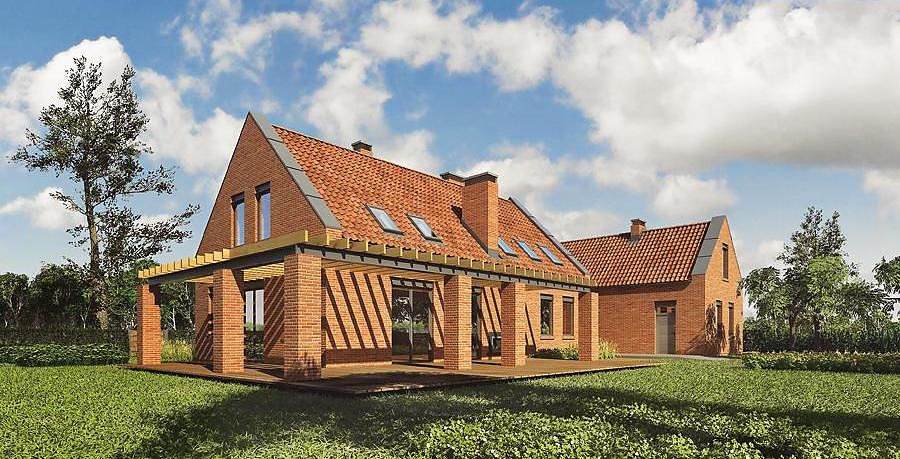

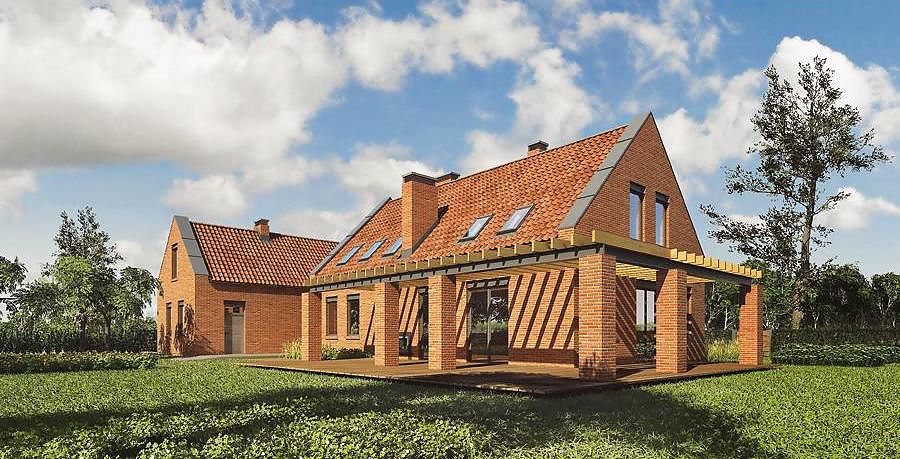

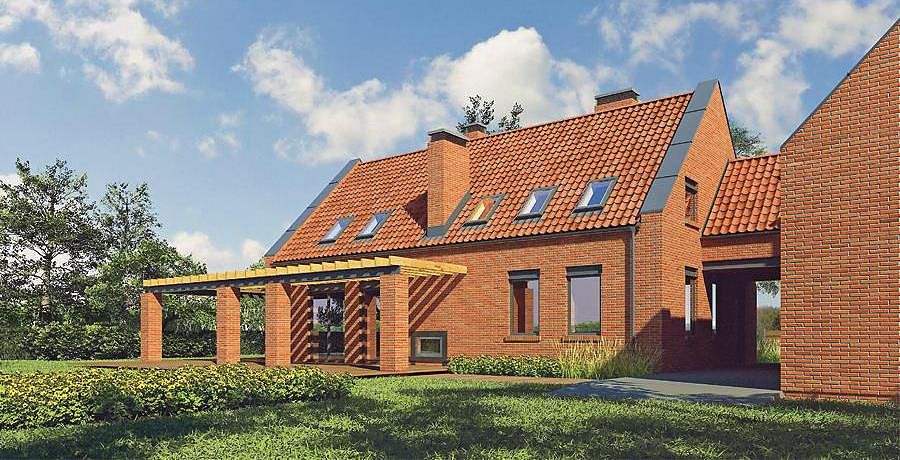

Archived house concept with an area of 353.9 m². Plans and visualizations support discussion; documentation, construction method and feasibility require separate confirmation.
About this project
Archived house concept with an area of 353.9 m². Plans and visualizations support discussion; documentation, construction method and feasibility require separate confirmation.
The parameters below come from the design archive. Before ordering, documentation, site suitability, local requirements and material scope need checking. A visualization is not a photograph of our work. Cost, transport, installation and timing are agreed in an individual offer.
Technical Specifications
- Total area
- 353.9 m²
- Living Area
- 166.9 m²
- Building area
- 242.5 m²
- Cubic Volume
- 584.4 m³
- Number of Floors
- 1 + attic
- Total rooms
- 5
- Bathrooms
- 2
- Garage
- 2 places
- House Type
- detached
- Ground-floor ceiling height
- 2.72 m
- Attic height
- 0.65-2.96 m
- Roof Type
- Gable
- Roof Pitch Angle
- 45 °
- Height at the ridge
- 8.4 m
- Wall Material
- SIP panels
- Minimum Plot Size
- 21.9 × 35.4 m
Floor-by-floor layout

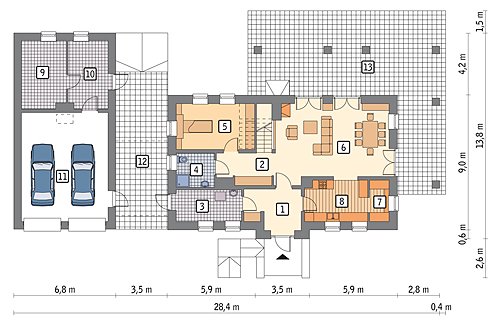

1st floor
89.2 m²
- 1 vestibule/entrance 9.3 m²
- 2 hall 9.9 m²
- 3 boiler room 9 m²
- 4 bathroom 5.7 m²
- 5 bedroom 14.6 m²
- 6 living room 35.1 m²
- 7 storage room 3.5 m²
- 8 kitchen 11.1 m²
- 9 utility room 13.1 m²
- 10 utility room 11.8 m²
- 11 garage 41.4 m²
- 12 terrace 36.4 m²
- 13 terrace 96.1 m²

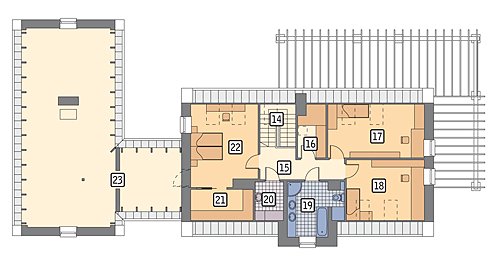

Attic
77.7 m²
- 14 staircase 6.3 m²
- 15 corridor 7.7 m²
- 16 dressing room 4 m²
- 17 bedroom 14.2 m²
- 18 bedroom 13.4 m²
- 19 bathroom 9.2 m²
- 20 laundry room 2.6 m²
- 21 dressing room 4 m²
- 22 bedroom 16.3 m²
- 23 attic space 54.5 m²

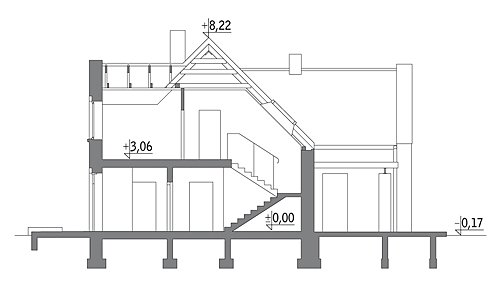

House cross-section
Vertical section with height marks and roof device
