Good Sign — Variant I
Archived house concept with an area of 234.1 m². Plans and visualizations support discussion; documentation, construction method and feasibility require separate confirmation.
About this project
Archived house concept with an area of 234.1 m². Plans and visualizations support discussion; documentation, construction method and feasibility require separate confirmation.
The parameters below come from the design archive. Before ordering, documentation, site suitability, local requirements and material scope need checking. A visualization is not a photograph of our work. Cost, transport, installation and timing are agreed in an individual offer.
Technical Specifications
- Total area
- 234.1 m²
- Living Area
- 163.1 m²
- Building area
- 147.4 m²
- Cubic Volume
- 914.9 m³
- Number of Floors
- 1 + attic
- Total rooms
- 6
- Bathrooms
- 3
- Garage
- 1 places
- House Type
- detached
- Ground-floor ceiling height
- 2.7 m
- Attic height
- 0.45-2.70 m
- Roof Type
- Gable
- Roof Pitch Angle
- 40 °
- Height at the ridge
- 8.7 m
- Wall Material
- SIP panels
- Minimum Plot Size
- 20.9 × 20.7 m
Floor-by-floor layout

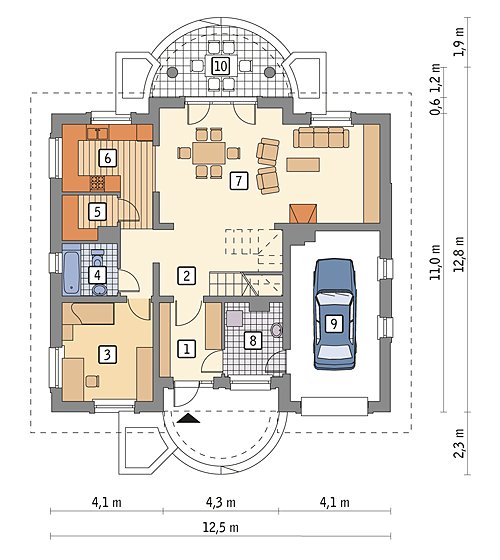

1st floor
77.7 m²
- 1 vestibule/entrance 6.2 m²
- 2 hall 10.8 m²
- 3 bedroom 12.1 m²
- 4 bathroom 3.9 m²
- 5 storage room 2.9 m²
- 6 kitchen 9.6 m²
- 7 living room 32.2 m²
- 8 boiler room 5.5 m²
- 9 garage 20.3 m²
- 10 terrace 12.7 m²

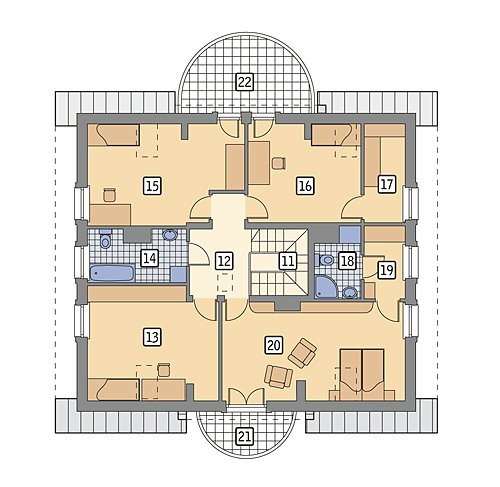

Attic
85.4 m²
- 11 staircase 4.7 m²
- 12 corridor 7 m²
- 13 bedroom 13.3 m²
- 14 bathroom 6.5 m²
- 15 bedroom 13.7 m²
- 16 bedroom 11.5 m²
- 17 dressing room 3 m²
- 18 bathroom 3.9 m²
- 19 dressing room 4 m²
- 20 bedroom 17.8 m²
- 21 balcony 4.9 m²
- 22 balcony 12.3 m²

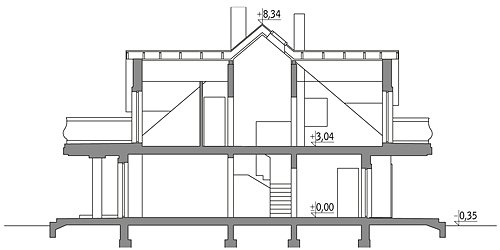

House cross-section
Vertical section with height marks and roof device
